Bianchi

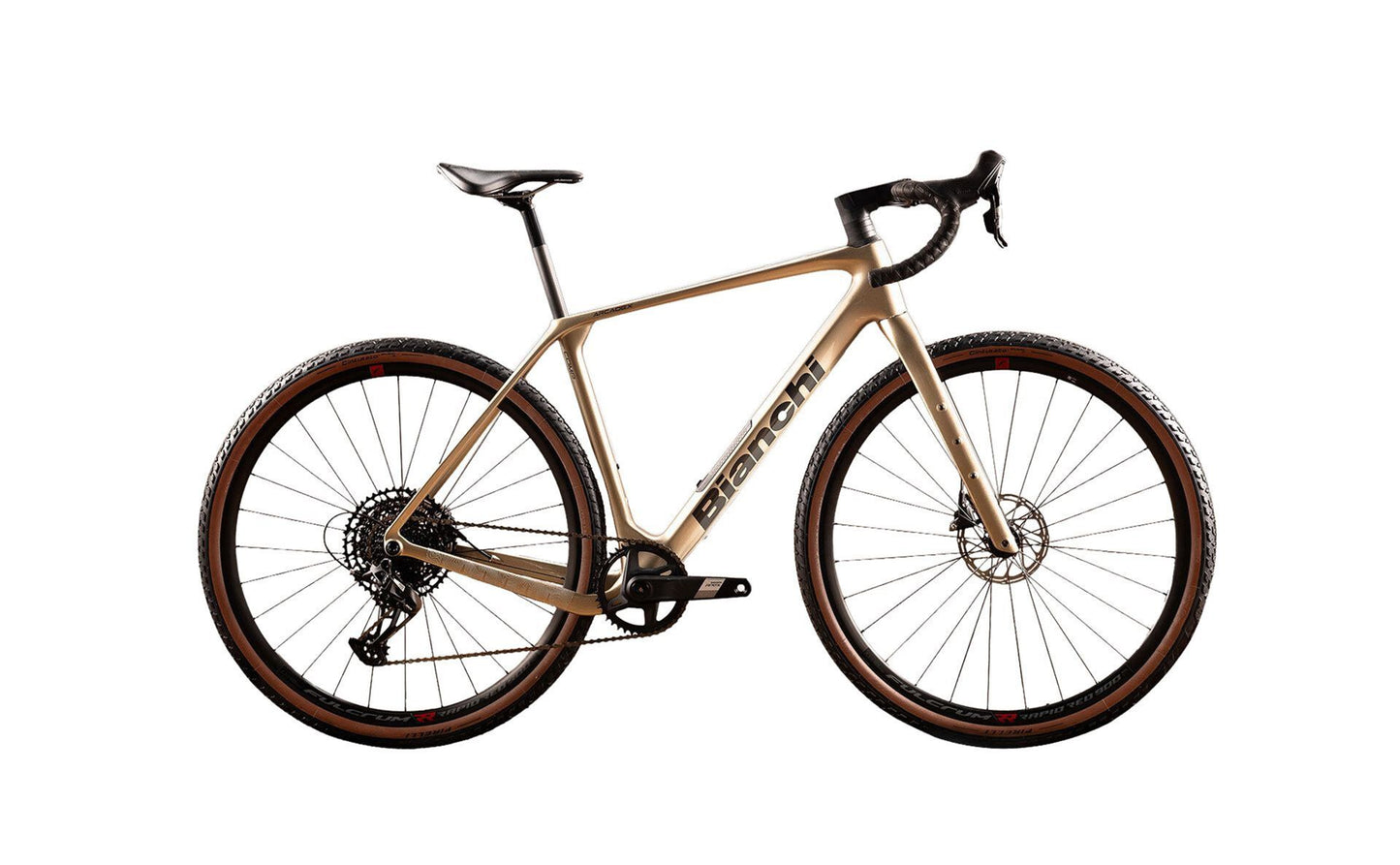

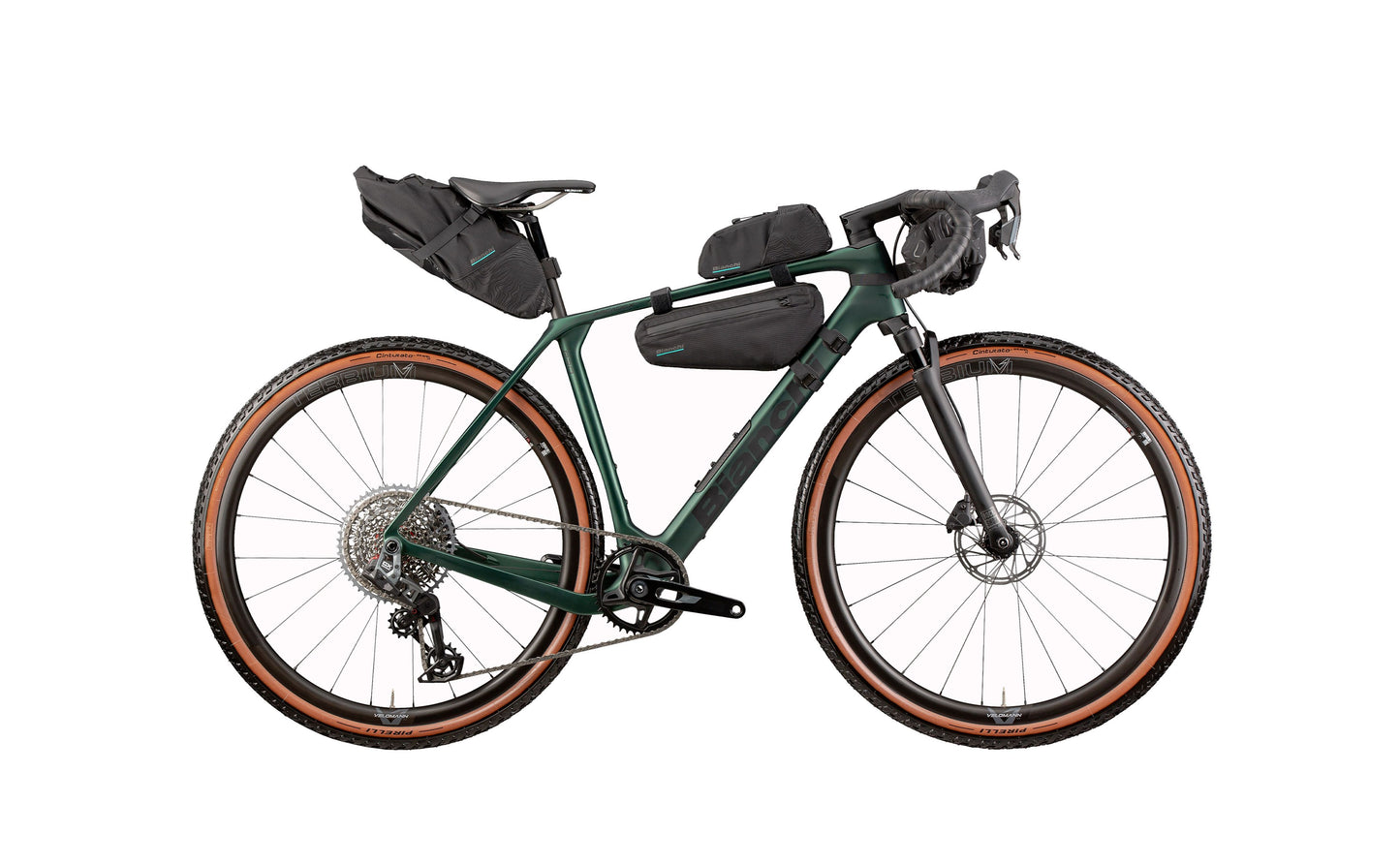

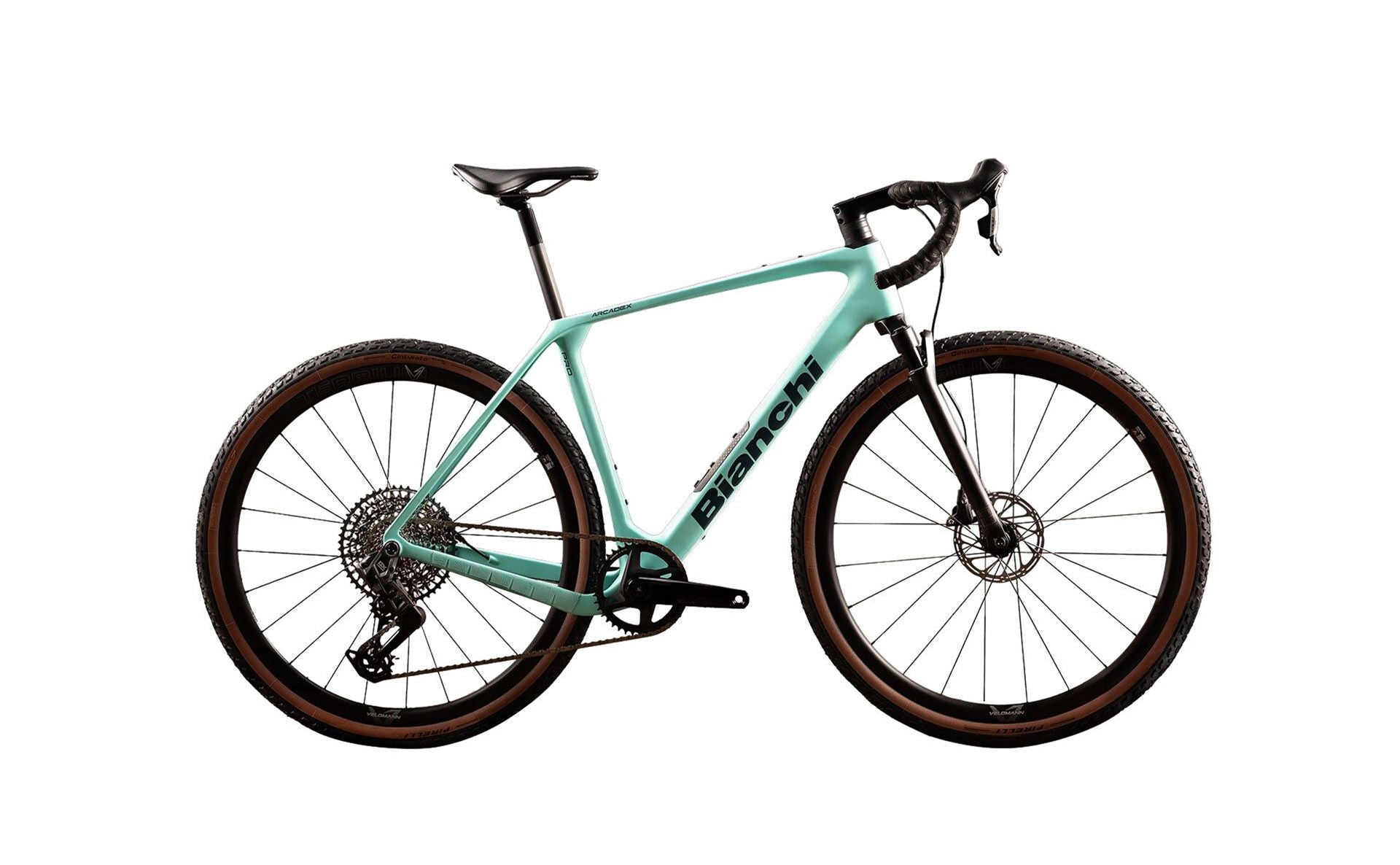

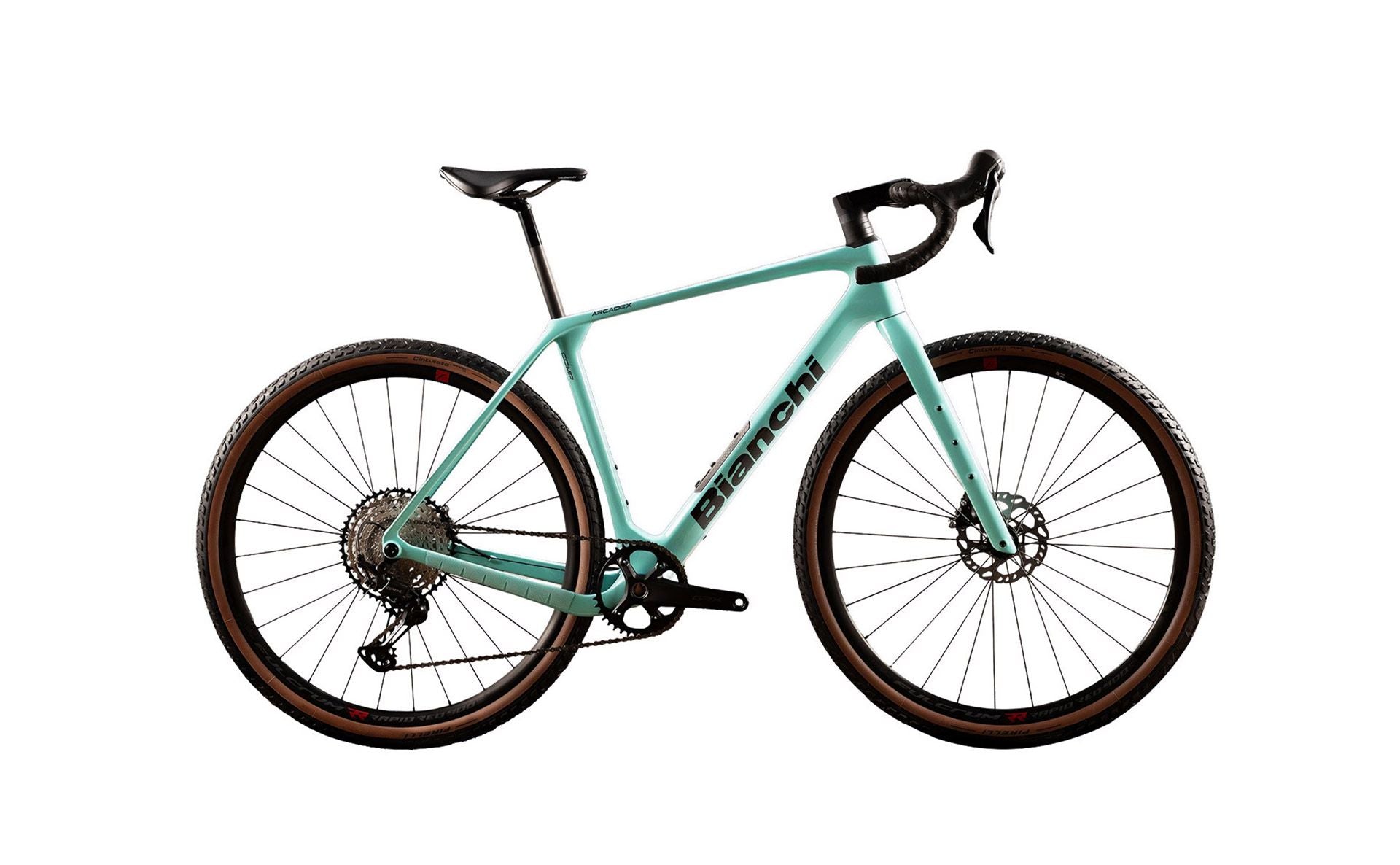

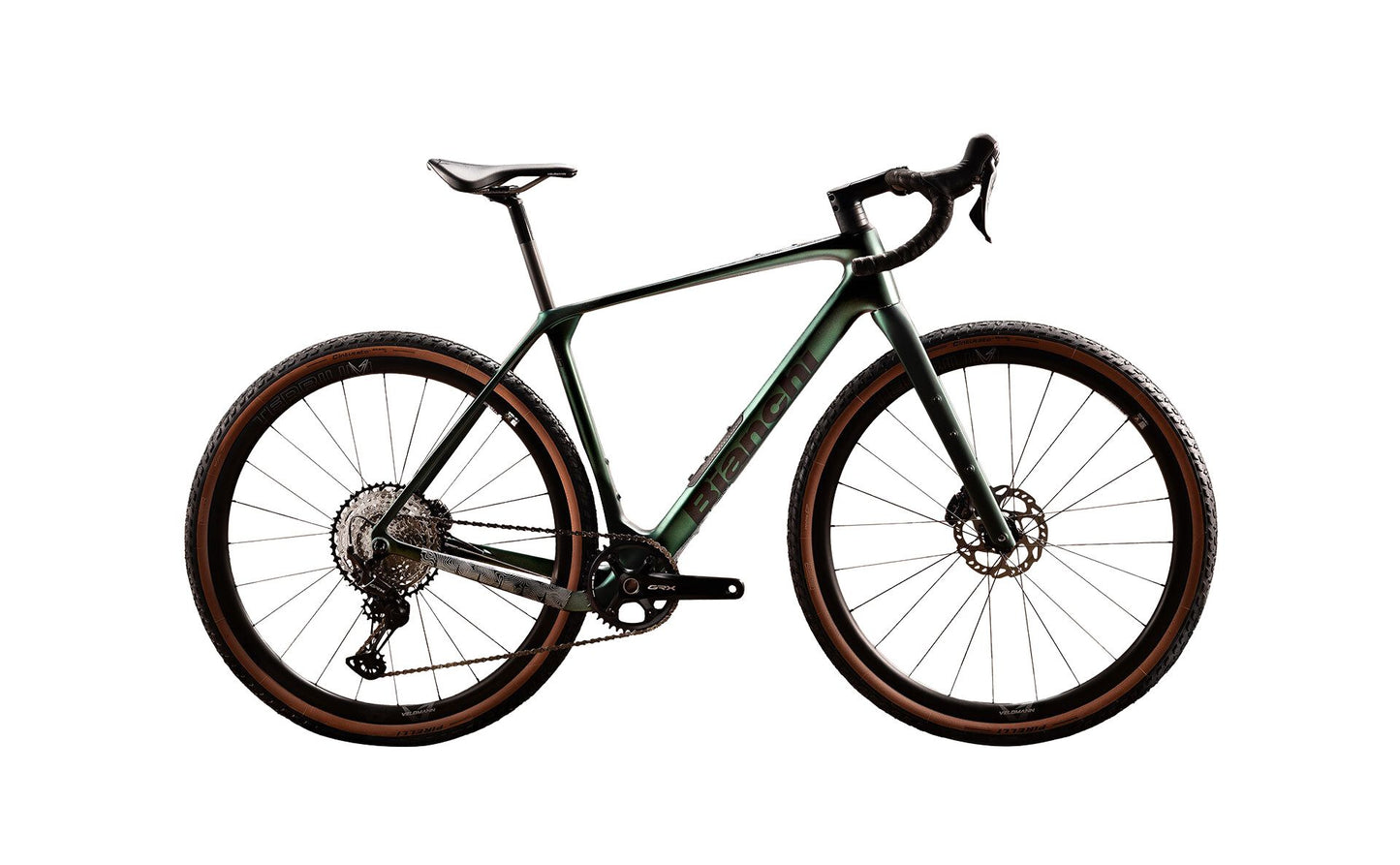

Bianchi Arcadex

Bianchi Arcadex

$4,750.00 CAD
$4,750.00 CAD
Sale Sold out
Shipping calculated at checkout.
Build
Color
Size

The Bianchi Arcadex delivers responsive performance for riders seeking precision and speed. Built with a lightweight frame geometry optimized for climbing and acceleration, this bike excels on varied terrain. Premium components ensure reliable shifting and braking, while the aerodynamic design reduces drag on long rides. Whether tackling climbs or cruising flats, the Arcadex Pro combines Italian engineering with modern capability for serious cyclists who demand efficiency and control.

Offered in many configurations to suit bike packing and racing. Internal frame storage, huge tire clearance, available Rock Shox Ruby fork, and proprietary frame bag kit!

Many models in stock at our Toronto Warehouse! Reserve yours today!

  • Frameset

    1. Frame

      Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL

    2. Fork

      RockShox Rudy, 30 mm travel, 1.5" tapered steerer, Thru axle 12x100 mm

    3. Headset

      Acros for internal cable routing

  • Drivetrain

    1. Shifters

      Sram Rival AXS E1

    2. Rear Derailleur

      Sram GX, T-Type, AXS

    3. Crankset

      Sram Rival XPLR E1, 40T Crank length: 165 mm (XS-SM); 170mm (MD-LG); 172.5mm (XL)

    4. Bottom Bracket

      Sram Press fit Road Wide 86.5x41

    5. Chain

      Sram GX, T-Type

    6. Cassette

      Sram XS-1275, 10-52T, 10-12-14-16-18-21-24-28-32-38-44-52T

  • Brakes

    1. Brakes

      Sram Rival, Hydraulic disc brake

    2. Brake Levers

      Included in the shifter

    3. Rotor

      Sram Centerline, Center Lock, 160 mm

  • Wheels

    1. Wheels

      Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Width Channel: 25 mm

    2. Tire

      Pirelli Cinturato Gravel M, 700x45, 120 TPI

  • Cockpit

    1. Stem

      Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 80mm (XS-47) (SM-51), 90mm(MD-55), 100mm(LG-58),110mm(XL-61)

    2. Handlebar

      Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420mm (MD-LG); 440mm (XL)

    3. Grips / Extensions

      Bianchi Hexagon tape, 2.5 mm thickness, black

  • Saddle

    1. Seatpost Clamp

      Bianchi Custom

    2. Seatpost

      Velomann Carbon, offset 15 mm, diameter 27.2 mm length: 300 mm (XS); 350mm (SM-XL)

    3. Saddle

      Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm
